COOLMAY ALL IN ONE (PLC+HMI) MODEL # QM3G-70KFH-60MRT-4AD2DA-2J-A0-2AO-EXW

COOLMAY ALL IN ONE (PLC+HMI) MODEL # QM3G-70KFH-60MRT-4AD2DA-2J-A0-2AO-EXW

Regular price $649.99 USD
Regular price Sale price $649.99 USD
Sale Sold out

MODEL # QM3G-70KFH-60MRT-AD2DA-J-AO-WP

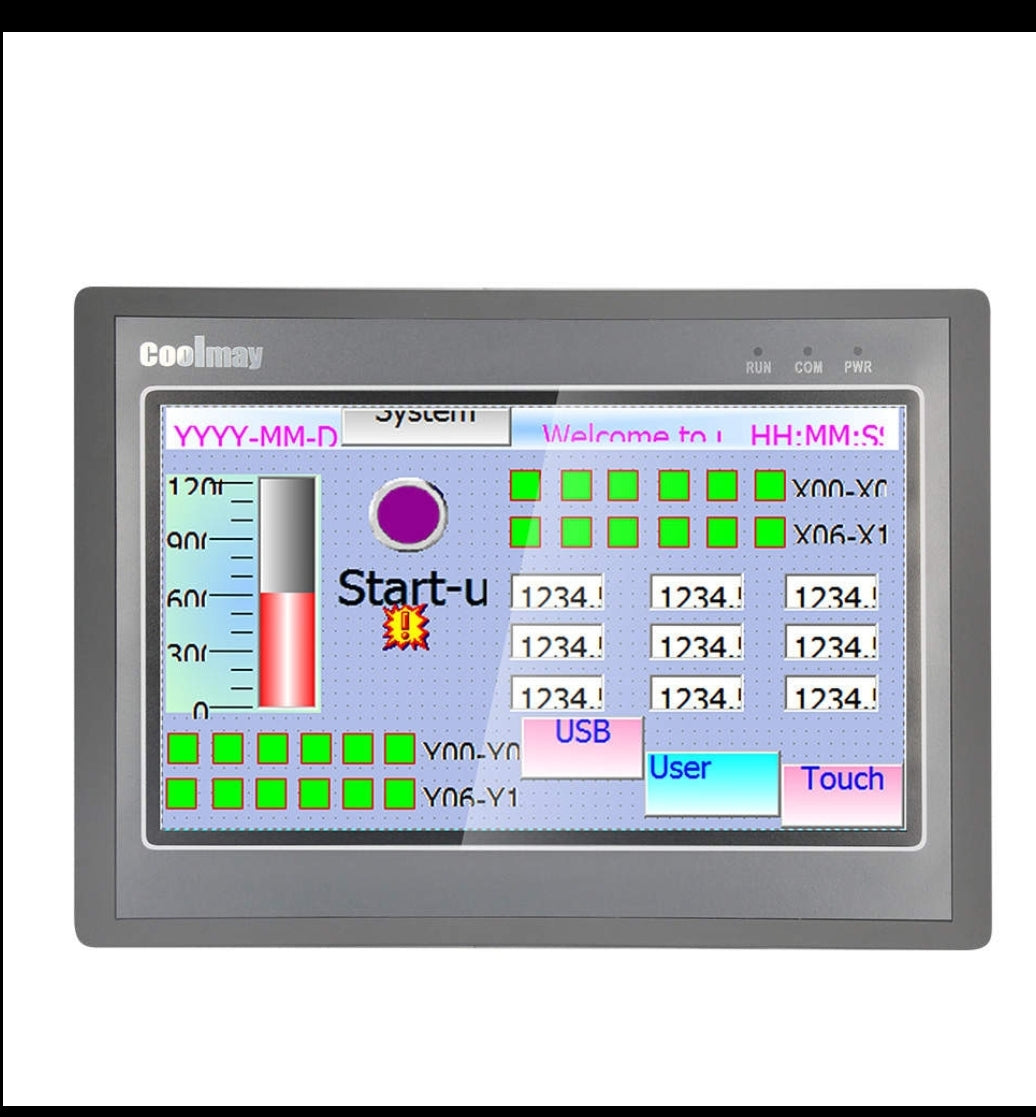

HMI: DESCRIPTION

 -SIZE: 7 INCH

 - PROGRAMMING PORT : 232 SERIAL PORT COM1 / USB TYPE B

 PLC: DESCRIPTION

 - DIGITAL INPUTS  : NPN 30

 - DIGITAL OUTPUTS:RELAY 26 (5 AMPS/POINT)/TRANSISTOR NPN4(500mA MAX POINT)

 - ANAOLG INPUT : THERMOCOUPLE TYPE J (4)

 - ANALOG OUTPUT CURRENT 0-20mA

 - PROGRAMMING PORT : ETHERNET LAN / USB TYPE C / 232 SERIAL PORT COM 2



- 20 Digital Inputs

- 18 digital Outputs ( Relay 5 amps )

- 4 ANALOG Inputs

- 2 ANALOG OUTPUT 0-20mA



The features are as below.

  1. PLC compatible with FX3G/FX3U/FX3S PLC. It operate fast.
  2. The digital points are 30 inputs and 30 outputs at most.
  3. Support several high-speed counting and high-speed pulse.
  4. 32K steps program capacity, 32K power-off retentive registers, support interrupt, linear and circular
  5. More models are supported to customize if bulk order. Super functions. Highly integration. The digital output can be transistor,relay or mixed output. Analog can reach up to 16 input and 8 output. FOR SOME MODELS

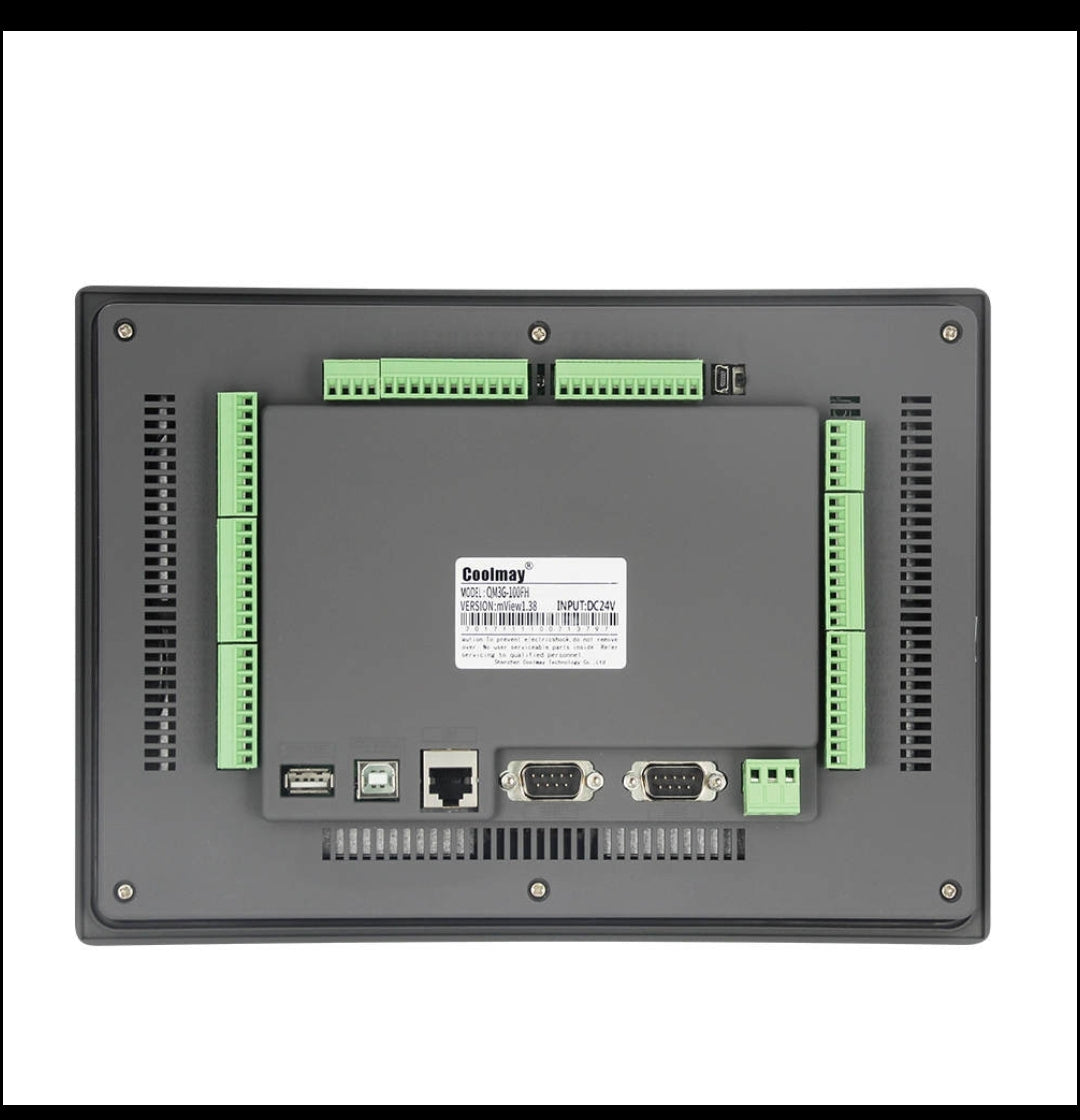

  6. It has  3 PLC COM port (1 RJ45, RS232 and Mini B-type USB port), 1 downloading port on HMI. Acceleration and deceleration are independent.
  7. Special encryption.Set password as 12345678 to thoroughly prevent reading data.(PLC only supports 8-bit password encryption) PLC is compatible with Mitsubishi programming software, and HMI is mView software . The network module can be selected according to customer requirements to realize remote control.
